k8s-dashboard布署

• • Kubernetes dashboard作用
  • 获取Kubernetes dashboard资源清单文件
  • 修改并部署kubernetes dashboard资源清单文件
  • 访问Kubernetes dashboard

Kubernetes dashboard作用

• 通过dashboard能够直观了解Kubernetes集群中运行的资源对象
• 通过dashboard可以直接管理（创建、删除、重启等操作）资源对象

获取Kubernetes dashboard资源清单文件

wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.1/aio/deploy/recommended.yaml

修改并部署kubernetes dashboard资源清单文件

直接将该资源清单文件下载下来，对其进行修改即可。
为了方便在容器主机上访问，下面的service需要添加NodePort类型及端口。

---kind: Service
apiVersion: v1
metadata:labels:k8s-app: kubernetes-dashboardname: kubernetes-dashboardnamespace: kubernetes-dashboard
spec:type: NodePort  ports:- port: 443targetPort: 8443nodePort: 30000selector:k8s-app: kubernetes-dashboard

为了防止权限不够，在 ClusterRoleBinding处需要修改登录kubernetes dashboard后用户的身份，不然无法显示资源情况。

---apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: kubernetes-dashboard
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: cluster-admin
subjects:- kind: ServiceAccountname: kubernetes-dashboardnamespace: kubernetes-dashboard

修改完成之后使用命令让其生效。
布署
kubectl apply -f recommended.yaml

访问Kubernetes dashboard

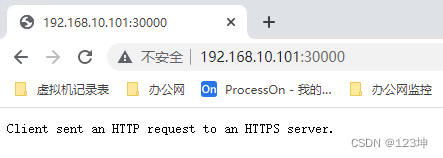

当在浏览器中输入IP：port时会提示：Client sent an HTTP request to an HTTPS server.

只需要在IP前面加上https:// 便可成功访问。

登录需要获取token，用命令的方式来获取即可。
先

kubectl get secret -n kubernetes-dashboard
NAME                               TYPE                                  DATA   AGE
default-token-w2s7j                kubernetes.io/service-account-token   3      29m
kubernetes-dashboard-certs         Opaque                                0      29m
kubernetes-dashboard-csrf          Opaque                                1      29m
kubernetes-dashboard-key-holder    Opaque                                2      29m
kubernetes-dashboard-token-t4qdp   kubernetes.io/service-account-token   3      29m

再来查看token

kubectl describe secret kubernetes-dashboard-token-t4qdp -n kubernetes-dashboard
##命令
Name:         kubernetes-dashboard-token-t4qdp
Namespace:    kubernetes-dashboard
Labels:
Annotations:  kubernetes.io/service-account.name: kubernetes-dashboardkubernetes.io/service-account.uid: e204650e-df62-46c8-810d-47d8fd98a4c1Type:  kubernetes.io/service-account-tokenData
====
ca.crt:     1367 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6InpaRW5OczVSZ19RYTIzcUVOb2c5V25fVkY2YW1aT2NOWlFzVFRCbUkzUlEifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC10b2tlbi10NHFkcCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImUyMDQ2NTBlLWRmNjItNDZjOC04MTBkLTQ3ZDhmZDk4YTRjMSIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDprdWJlcm5ldGVzLWRhc2hib2FyZCJ9.QocuobfL-pUwFJgqIVOIvq9rkGQsJ5f4undVJmqi6mZRYTCSSMpp0QC-Po05fH1Hp1_2llEUcwC0rUSALw7aX5Y3qwdGxxc0oV1C1lm2K-I67NMYLU4IcLrjhRRV9x0cnc3pk8i_k1fA5FwYhtP1_U6c0Q0e1nSOKJFy-SQFDvCV4OcFxGA2bua4ul-IUG91fZEDYNNp64uDuhrnGC8DSAyE0-N52t9mOr3Azng_1r15_b2mfA36B4lLUSUMuG9AkIThE4ggqe1fc2PqQyeoDUzRysvF3PMgRiq-B-IkEMJvVU7umkySDV2jm9wdF-UPs-M9zwd49HQKH8flBH8fxA

使用token登入之后结果如下图所示:
