retrantlock：

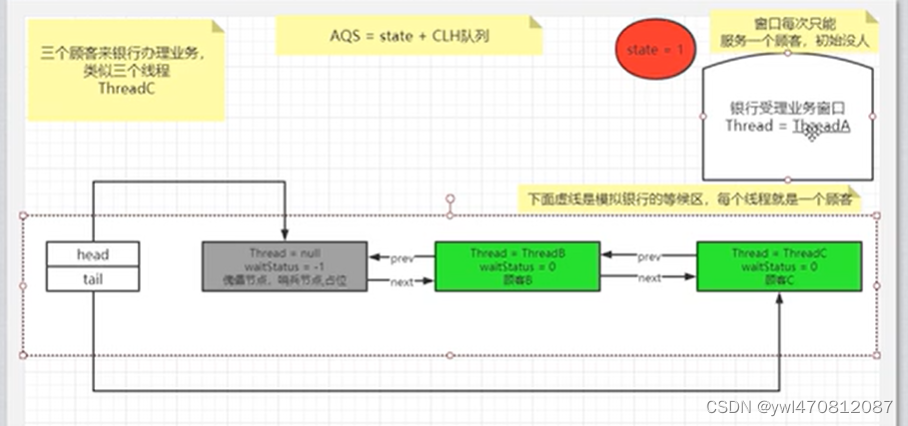

A、B、C3个线程，假设A线程lock()时候拿到了锁，state被A设置成了1。

  static final class NonfairSync extends Sync {private static final long serialVersionUID = 7316153563782823691L;/*** Performs lock.  Try immediate barge, backing up to normal* acquire on failure.*/final void lock() {if (compareAndSetState(0, 1))setExclusiveOwnerThread(Thread.currentThread());elseacquire(1);}protected final boolean tryAcquire(int acquires) {return nonfairTryAcquire(acquires);}}

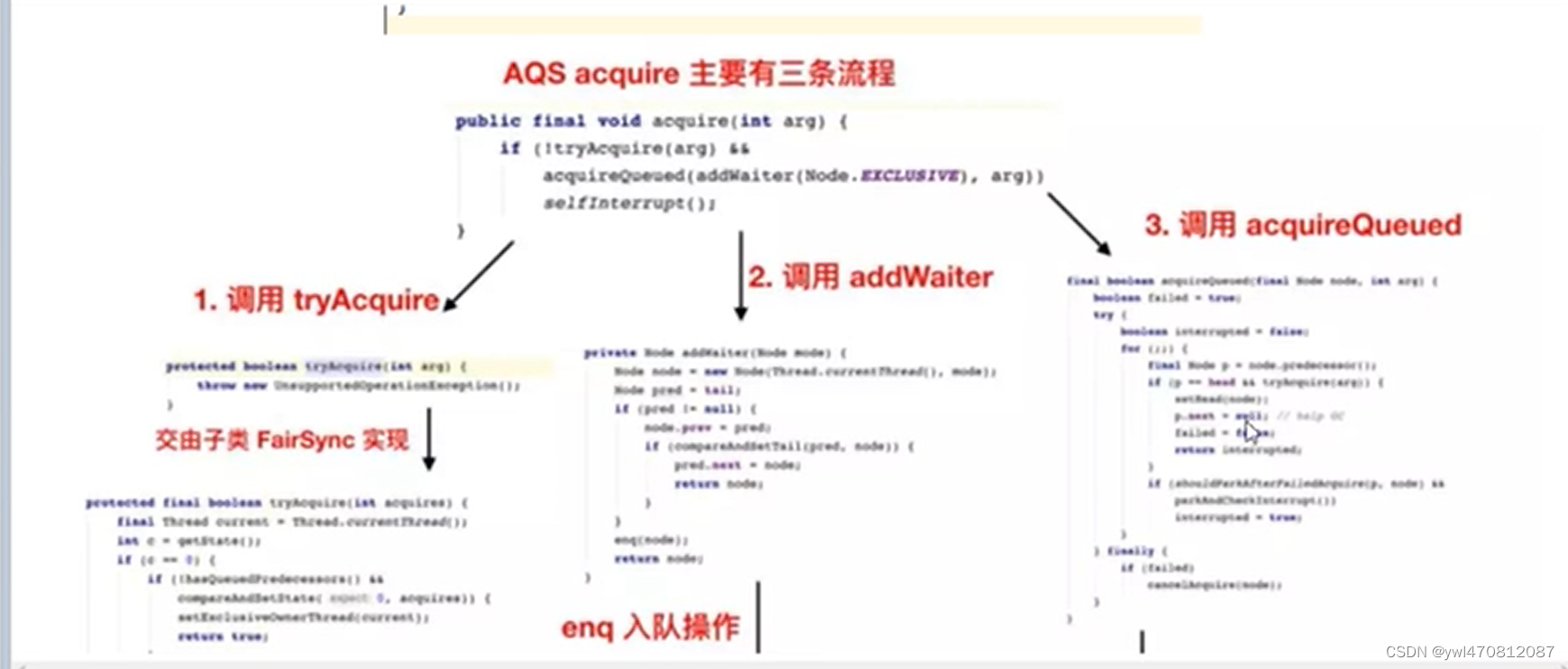

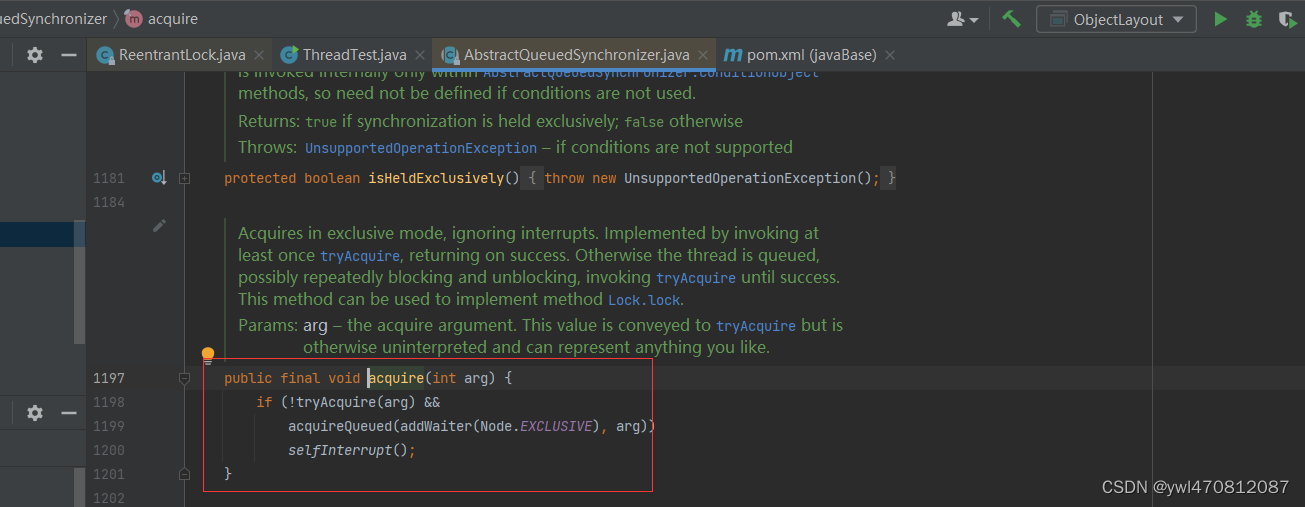

 此时B和C调用lock时候就会走else，调用acquire(1);

我们可用看见这里的B和C会尝试获取锁，没有获取到就会把当前线程封装成node节点放到CLH双向队列里。让后阻断当前线程

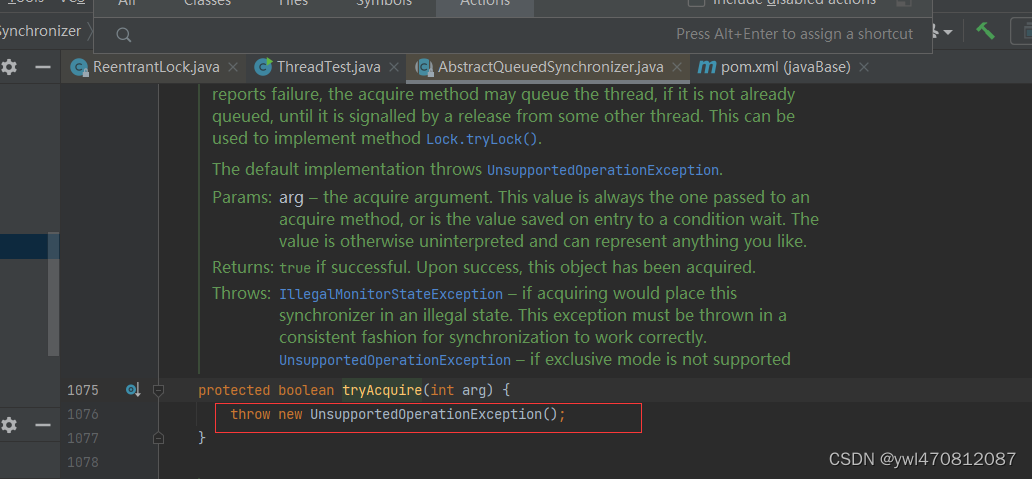

AQS的 tryAcquire()，

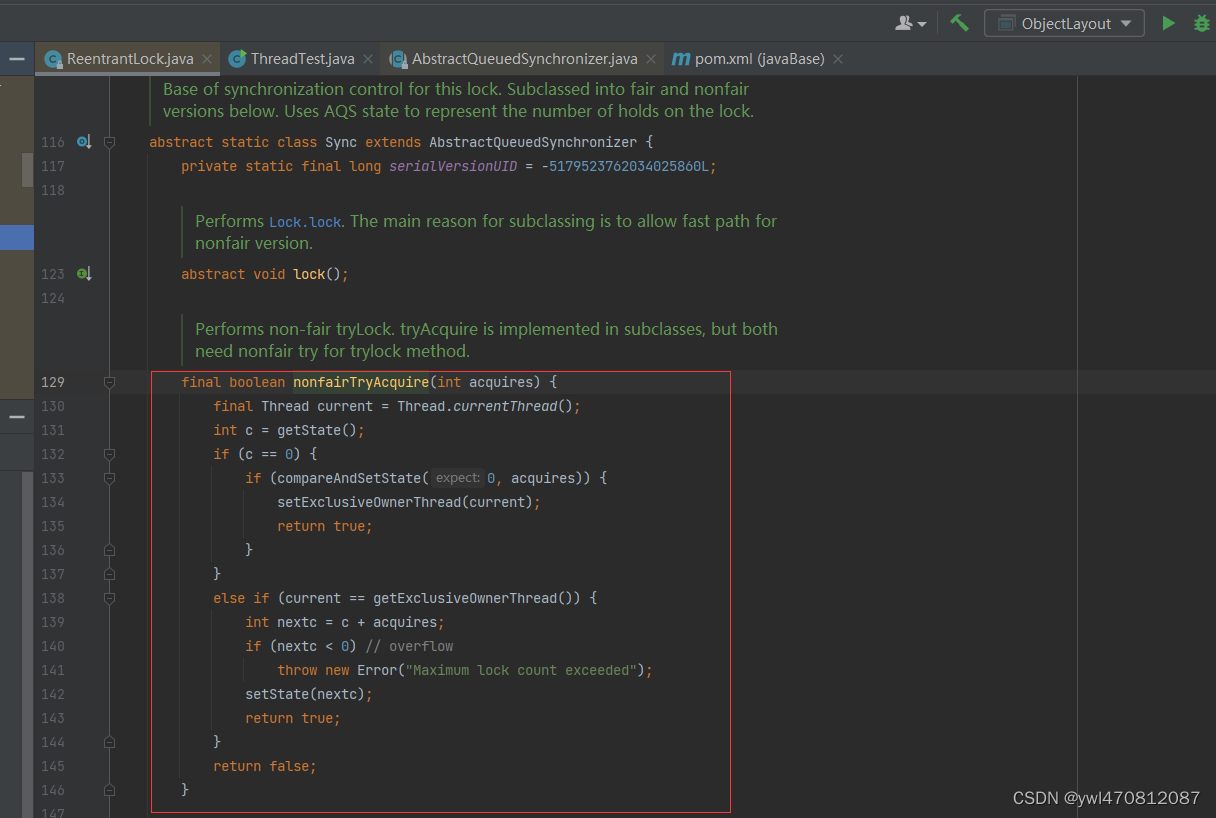

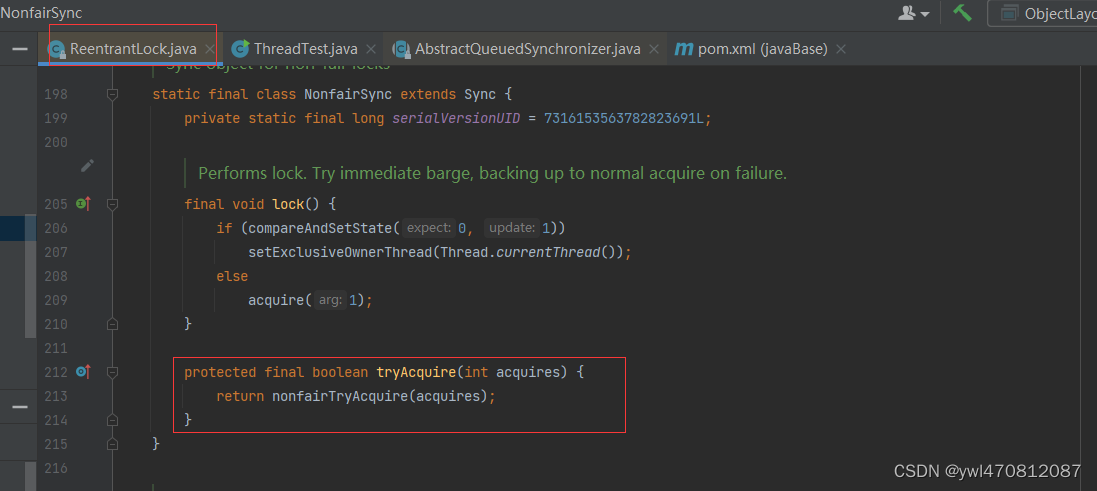

实际是调用RetrantLock的非公平nonfairTryAcquire();

 此时 int c = getState();  c是1   并且current == getExclusiveOwnerThread()条件不成立。因为此时线程A占有锁，所以current此时是线程B 与 getExclusiveOwnerThread()是线程A，并不相等，返回false。

else if (current == getExclusiveOwnerThread()) {int nextc = c + acquires;if (nextc < 0) // overflowthrow new Error("Maximum lock count exceeded");setState(nextc);return true;
}

上面这段代码以上是假设B来了A刚好释放了锁，此时，突然A又来抢到了锁，这个时候current就是A线程和 getExclusiveOwnerThread()也是线程A，相等。又将state设置为1，并且占用锁。

将当前线程封装成node节点放到队列里

 private Node addWaiter(Node mode) {Node node = new Node(Thread.currentThread(), mode);// Try the fast path of enq; backup to full enq on failureNode pred = tail;if (pred != null) {node.prev = pred;if (compareAndSetTail(pred, node)) {pred.next = node;return node;}}enq(node);return node;}

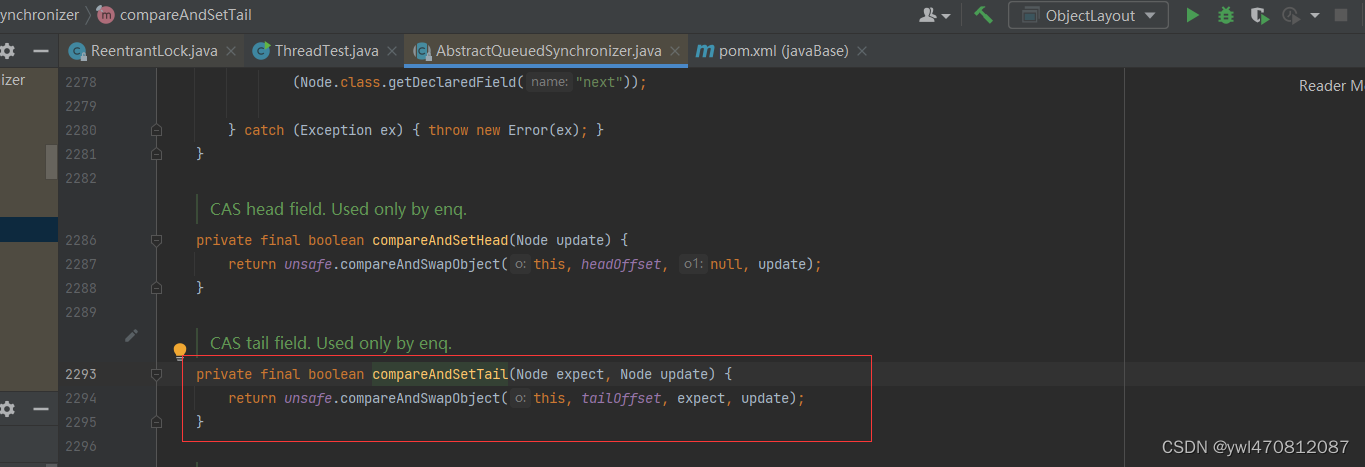

你会发现底层调用了unsafe的接口 ，头指针主要是用于入队。

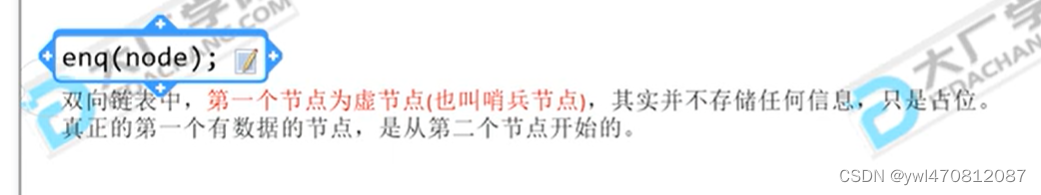

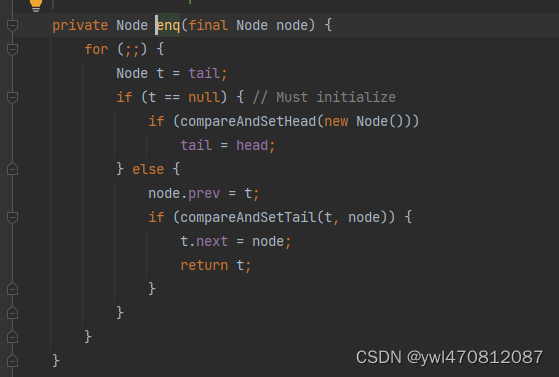

new Node()作为头节点 （第一个节点）

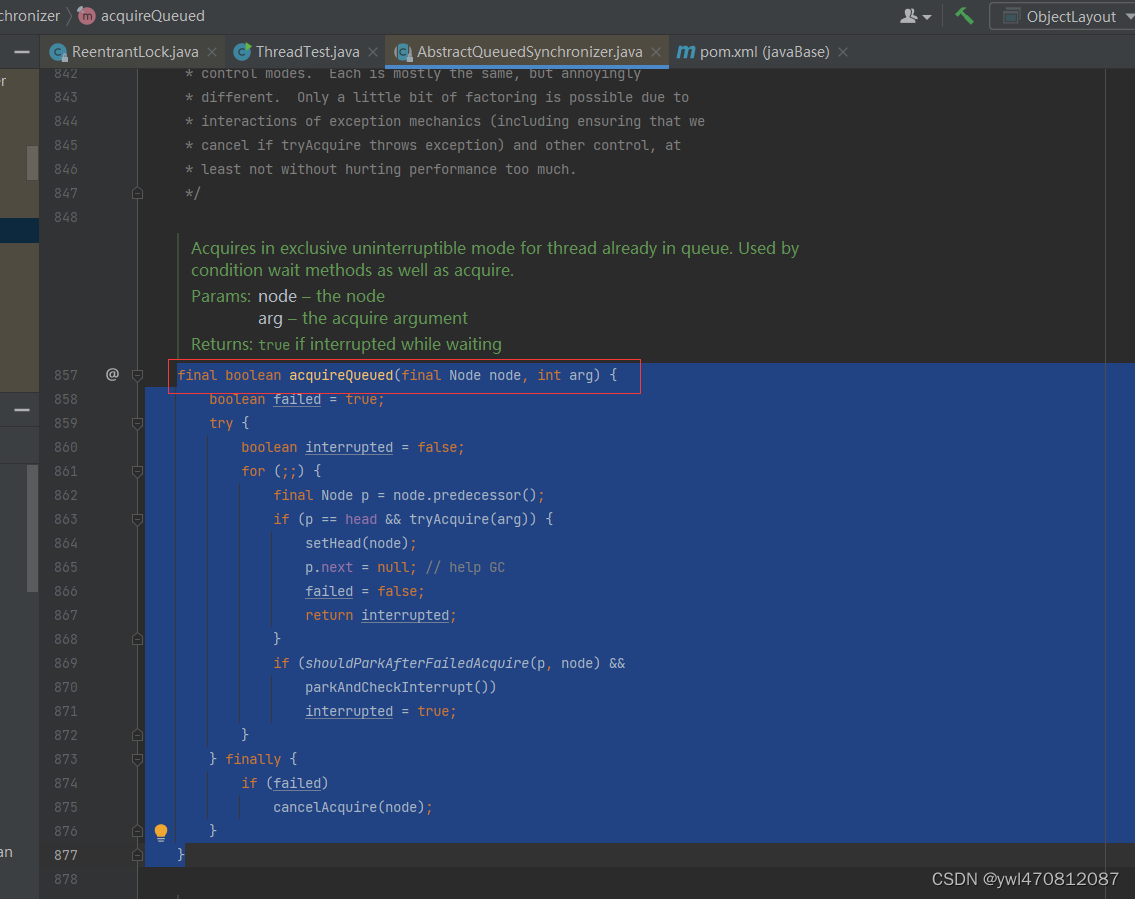

acquireQueued()干了一件什么事呢？

private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) {int ws = pred.waitStatus;if (ws == Node.SIGNAL)/** This node has already set status asking a release* to signal it, so it can safely park.*/return true;if (ws > 0) {/** Predecessor was cancelled. Skip over predecessors and* indicate retry.*/do {node.prev = pred = pred.prev;} while (pred.waitStatus > 0);pred.next = node;} else {/** waitStatus must be 0 or PROPAGATE.  Indicate that we* need a signal, but don't park yet.  Caller will need to* retry to make sure it cannot acquire before parking.*/compareAndSetWaitStatus(pred, ws, Node.SIGNAL);}return false;}

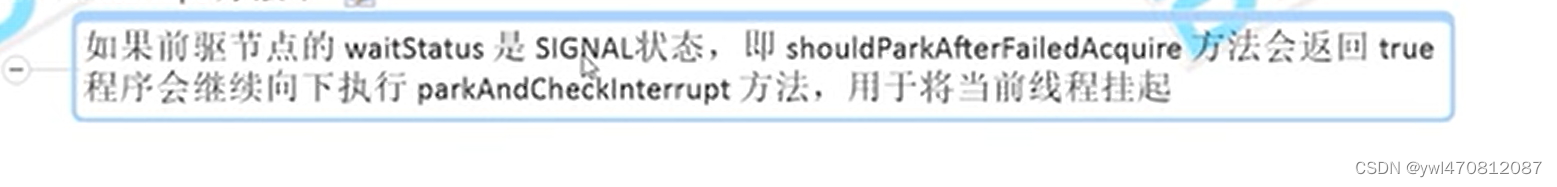

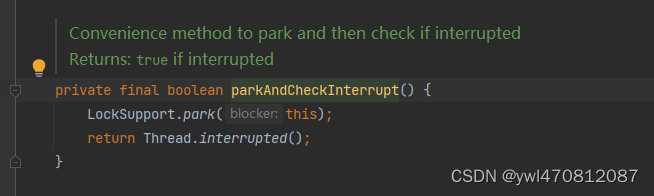

没有抢到锁就阻塞，LockSupport.park(this);线程挂起不会继续往下执行

compareAndSetWaitStatus(pred, ws, Node.SIGNAL);

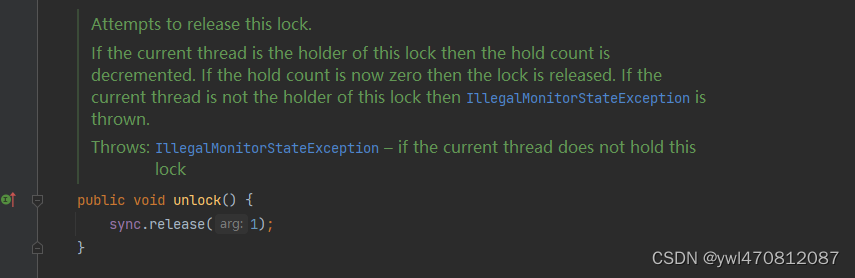

 unlock()f释放锁；

 public final boolean release(int arg) {if (tryRelease(arg)) {Node h = head;if (h != null && h.waitStatus != 0)unparkSuccessor(h);return true;}return false;}

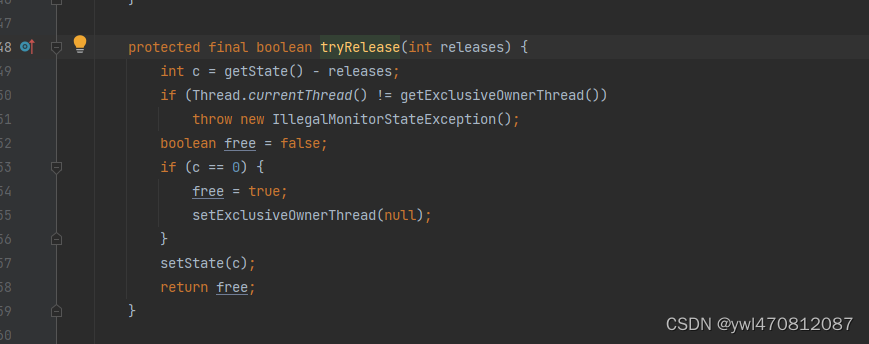

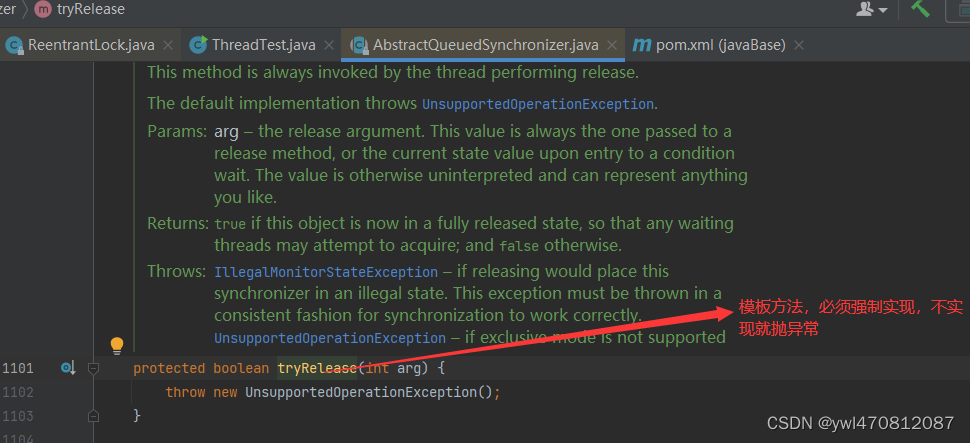

释放锁实现：

 int c = getState() - releases; state的值此时是1，releases值也是1  所以c就变成了0，就释放了锁

 setExclusiveOwnerThread(null);设置当前占用线程为null，就是没有线程占用。

 setState(c);将state状态重新设置为0.
