项目要求

1）服务器负责管理所有员工表单（以数据库形式），其他客户端可通过网络连接服务器来查询员工表单。

2）需要账号密码登陆，其中需要区分管理员账号还是普通用户账号。

3）管理员账号可以查看、修改、添加、删除员工信息，同时具有查询历史记录功能，管理员要负责管理所有的普通用户。

4）普通用户只能查询修改与本人有关的相关信息，其他员工信息不得查看修改。

5）服务器能同时相应多台客户端的请求功能。并发

项目涉及的知识点

1.TCP通信的服务器、客户端编程流程

        1.服务器：

                1）创建套接字

                2）绑定ip和端口号

                3）监听

                4）等待客户端连接

        2.客户端：

                1）创建套接字

                2）连接服务器

2.服务器并发

        1）多线程

        2）多进程

        3）IO多路复用：select

3.sqlite3数据库常用语句以及编程接口

        编译数据库接口相关c文件需要链接库 -lsqlite3

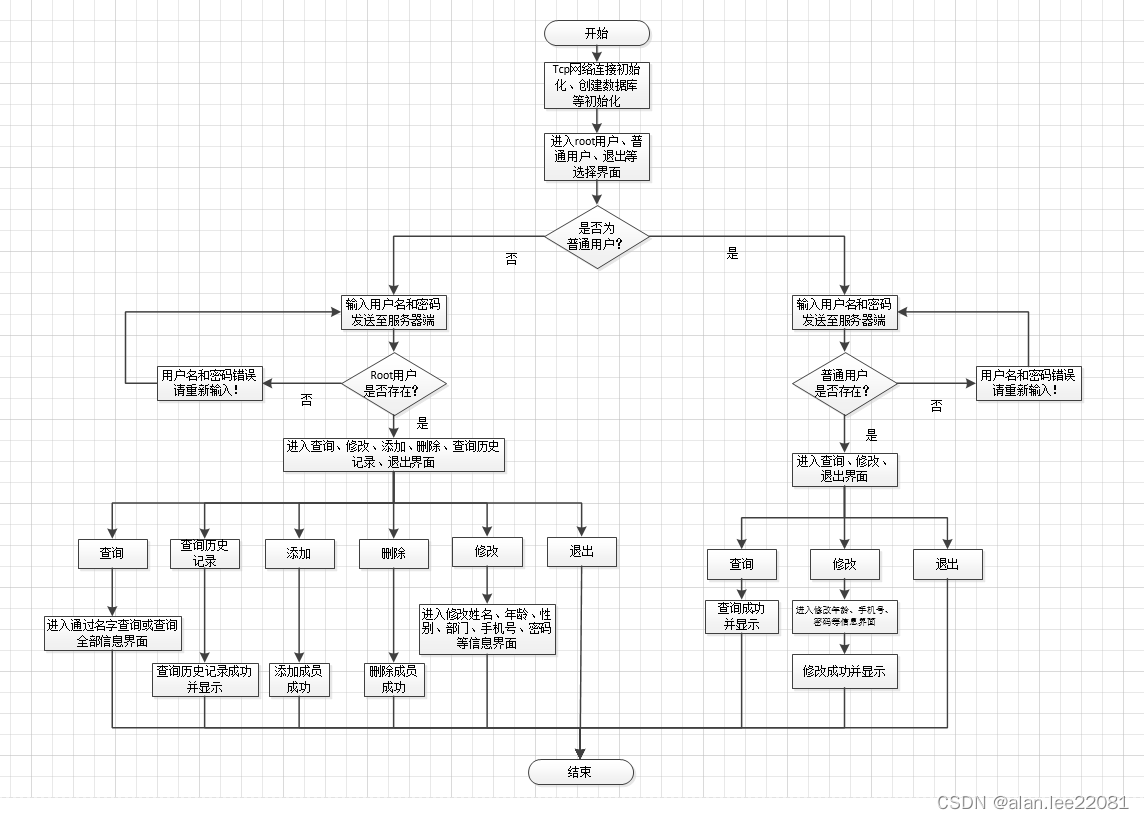

项目流程图

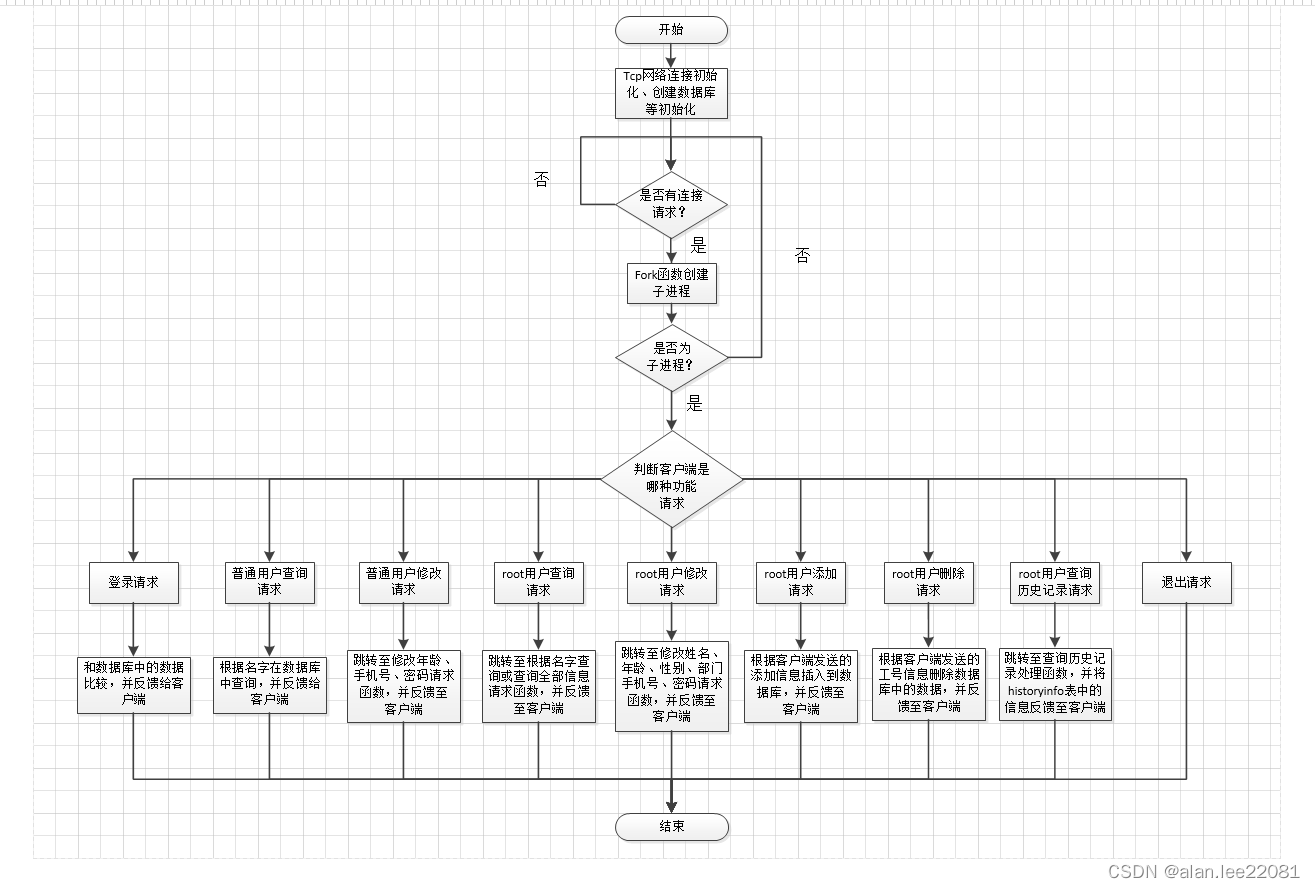

服务器

客户端

通信结构体的构建

/*员工基本信息*/
typedef struct staff_info{int  no;             //员工编号int  usertype;      //ADMIN 0    USER 1     char name[NAMELEN];    //姓名char passwd[8];     //密码int  age;             // 年龄char phone[NAMELEN];//电话char addr[DATALEN]; // 地址char work[DATALEN]; //职位char date[DATALEN];    //入职年月int level;            // 等级double salary ;        // 工资}staff_info_t;/*定义双方通信的结构体信息*/
typedef struct {int  msgtype;     //请求的消息类型int  usertype;    //ADMIN 0    USER 1       char username[NAMELEN];  //姓名char passwd[8];             //登陆密码char recvmsg[DATALEN];   //通信的消息int  flags;      //标志位void *released;staff_info_t info;      //员工信息
}MSG;

代码

头文件


#ifndef _COMMON_H_
#define _COMMON_H_#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include #define STAFF_DATABASE 	 "staff_manage_system.db"#define USER_LOGIN 		0x00000000  // login	登陆    0x00000001
#define USER_MODIFY 	0x00000001  // user-modification  修改
#define USER_QUERY 		0x00000002  // user-query   查询#define ADMIN_LOGIN 	0x10000000  // login	         登陆    0x00000001
#define ADMIN_MODIFY 	0x10000001 // admin_modification 修改
#define ADMIN_ADDUSER 	0x10000002 // admin_adduser      添加
#define ADMIN_DELUSER 	0x10000004 // admin_deluser      删除
#define ADMIN_QUERY 	0x10000008  //hitory_query       查找
#define ADMIN_HISTORY 	0x10000010  //hitory_history     历史#define ADMIN_LIST      0x10000011 //列表#define QUIT 			0x11111111#define ADMIN 0	//管理员
#define USER  1	//用户#define PASSLEN 8
#define NAMELEN 16
#define DATALEN 128/*员工基本信息*/
typedef struct staff_info
{int  no; 					//员工编号int  usertype;  			//ADMIN 1	USER 2	 char name[NAMELEN];			//姓名char passwd[PASSLEN]; 		//密码int  age; 					// 年龄char phone[NAMELEN];		//电话char addr[DATALEN]; 		// 地址char work[DATALEN]; 		//职位char date[DATALEN];			//入职年月int level;					// 等级int salary;					// 工资}staff_info_t;/*定义双方通信的结构体信息*/
typedef struct
{int  msgtype;       	 //请求的消息类型int  usertype;   		 //ADMIN 1	USER 2	   char username[NAMELEN];  //姓名char passwd[PASSLEN];	 //登陆密码char recvmsg[DATALEN];   //通信的消息int  flags;      		 //标志位staff_info_t info;       //员工信息
}MSG;#define S_IP "10.0.12.9"
#define IP "192.168.250.100"
#define PORT "8888"char user_name[NAMELEN];	 //姓名
char user_passwd[PASSLEN];	 //登陆密码char history[DATALEN+100];#endif

服务端

...

客户端


#include "common.h"int do_login(int socketfd);/***************************************函数名：do_query*参   数：消息结构体*功   能：管理员查询****************************************/
void do_admin_query(int sockfd, MSG *msg)
{system("clear");memset(msg, 0, sizeof(MSG));msg->msgtype = ADMIN_QUERY;char name[NAMELEN] = "";printf("Please enter find no:");scanf("%s", name);while (getchar() != '\n');strcpy(msg->recvmsg, name);//发送查询请求if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}//接受服务器响应while (1){recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "end", 3)){printf("find success\n");return;}if (!strncmp(msg->recvmsg, "no", 2)){printf("find error\n");return;}printf("----------------------------------\n");printf("staffno :%d\nusertype:%d\nname    :%s\npasswd  :%s\nage     :%d\nphone   :%s\naddr    :%s\nwork    :%s\ndate    :%s\nlevel   :%d\nsalary  :%d\n", msg->info.no, msg->info.usertype, msg->info.name, msg->info.passwd, msg->info.age, msg->info.phone, msg->info.addr, msg->info.work, msg->info.date, msg->info.level, msg->info.salary);printf("----------------------------------\n");}
}/***************************************函数名：admin_modification*参   数：消息结构体*功   能：管理员修改****************************************/
void do_admin_modification(int sockfd, MSG *msg) //管理员修改
{system("clear");memset(msg, 0, sizeof(MSG));msg->msgtype = ADMIN_MODIFY;int opt = 0;int tem;char str1[NAMELEN] = "";char str2[DATALEN] = "";char str3[PASSLEN] = "";printf("please enter user name:");scanf("%s",msg->username);printf("1:no\n2:usertype\n3:name\n4:passwd\n5:age\n6:phone\n7:addr\n8:work\n9:date\n10:level\n11:salary\nplease enter change option:");scanf("%d", &opt);while(getchar()!='\n');switch (opt){case 1:msg->flags = 1;printf("please enter no:");scanf("%d", &tem);msg->info.no = tem;break;case 2:msg->flags = 2;printf("please enter usertype:");scanf("%d", &tem);msg->info.usertype = tem;break;case 3:msg->flags = 3;printf("please enter name:");fgets(str1,NAMELEN,stdin);str1[strlen(str1)-1]='\0';strcpy(msg->info.name, str1);break;case 4:msg->flags = 4;printf("please enter passwd:");fgets(str3,PASSLEN,stdin);str3[strlen(str3)-1]='\0';strcpy(msg->info.passwd, str1);break;case 5:msg->flags = 5;printf("please enter age:");scanf("%d", &tem);msg->info.age = tem;break;case 6:msg->flags = 6;printf("please enter phone:");fgets(str1,NAMELEN,stdin);str1[strlen(str1)-1]='\0';strcpy(msg->info.phone, str1);break;case 7:msg->flags = 7;printf("please enter addr:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.addr, str2);break;case 8:msg->flags = 8;printf("please enter work:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.work, str2);break;case 9:msg->flags = 9;printf("please enter date:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.date, str2);break;case 10:msg->flags = 10;printf("please enter level:");scanf("%d", &tem);msg->info.level = tem;break;case 11:msg->flags = 11;printf("please enter salary:");scanf("%d", &tem);msg->info.salary = tem;break;default:printf("enter error\n");return;}if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}system("clear");recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "ok", 2)){printf("user change success\n");return;}else if(!strncmp(msg->recvmsg, "no", 2)){printf("user change error\n");return;}}/***************************************函数名：admin_adduser*参   数：消息结构体*功   能：管理员创建用户****************************************/
void do_admin_adduser(int sockfd, MSG *msg) //管理员添加用户
{system("clear");int tem;char str1[NAMELEN] = "";char str2[DATALEN] = "";char str3[PASSLEN] = "";memset(msg, 0, sizeof(MSG));msg->msgtype = ADMIN_ADDUSER;printf("please enter no:");scanf("%d", &tem);msg->info.no = tem;printf("please enter usertype:");scanf("%d", &tem);msg->info.usertype = tem;while (getchar() != '\n');printf("please enter name:");fgets(str1,NAMELEN,stdin);str1[strlen(str1)-1]='\0';strcpy(msg->info.name, str1);printf("please enter passwd:");fgets(str3,PASSLEN,stdin);str3[strlen(str3)-1]='\0';strcpy(msg->info.passwd, str3);printf("please enter age:");scanf("%d", &tem);msg->info.age = tem;while (getchar() != '\n');printf("please enter phone:");fgets(str1,NAMELEN,stdin);str1[strlen(str1)-1]='\0';strcpy(msg->info.phone, str1);printf("please enter addr:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.addr, str2);printf("please enter work:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.work, str2);printf("please enter date:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.date, str2);printf("please enter level:");scanf("%d", &tem);msg->info.level = tem;printf("please enter salary:");scanf("%d", &tem);msg->info.salary = tem;if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "ok", 2)){printf("user add success\n");return;}else if (!strncmp(msg->recvmsg, "no", 2)){printf("user add error\n");return;}printf("user add error\n");
}/***************************************函数名：admin_deluser*参   数：消息结构体*功   能：管理员删除用户****************************************/
void do_admin_deluser(int sockfd, MSG *msg) //管理员删除用户
{system("clear");msg->msgtype = ADMIN_DELUSER;int no = 0;printf("pelase enter delete user NO:");scanf("%d", &no);msg->info.no = no;if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "ok", 2)){printf("user delete success\n");return;}else if (!strncmp(msg->recvmsg, "no", 2)){printf("user delete error\n");return;}
}/***************************************函数名：do_history*参   数：消息结构体*功   能：管理员查看历史记录****************************************/
void do_admin_history(int sockfd, MSG *msg)
{system("clear");memset(msg, 0, sizeof(MSG));msg->msgtype = ADMIN_HISTORY;putchar(10);printf("   %s     |     %s     |                        %s                        \n","data","time","log");if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}while (1){recv(sockfd, msg, sizeof(MSG), 0);if (msg->flags == 1){printf("find success\n");break;}if (msg->flags == 2){printf("find error\n");break;}printf("%s",msg->recvmsg);send(sockfd, msg, sizeof(MSG), 0);}}void do_admin_list(int sockfd, MSG *msg)
{system("clear");memset(msg, 0, sizeof(MSG));msg->msgtype = ADMIN_LIST;char name[NAMELEN] = "";//发送查询请求if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}//接受服务器响应while (1){recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "endd", 4)){printf("find success\n");return;}if (!strncmp(msg->recvmsg, "no", 2)){printf("find error\n");return;}//printf("%d\t%d\t%s\t%s\t%d\t%s\t%s\t%s\t%s\t%d\t%d\n", msg->info.no, msg->info.usertype, msg->info.name, msg->info.passwd, msg->info.age, msg->info.phone, msg->info.addr, msg->info.work, msg->info.date, msg->info.level, msg->info.salary);printf("----------------------------------\n");printf("staffno :%d\nusertype:%d\nname    :%s\npasswd  :%s\nage     :%d\nphone   :%s\naddr    :%s\nwork    :%s\ndate    :%s\nlevel   :%d\nsalary  :%d\n", msg->info.no, msg->info.usertype, msg->info.name, msg->info.passwd, msg->info.age, msg->info.phone, msg->info.addr, msg->info.work, msg->info.date, msg->info.level, msg->info.salary);printf("----------------------------------\n");send(sockfd, msg, sizeof(MSG), 0);}
}/***************************************函数名：admin_menu*参   数：套接字、消息结构体*功   能：管理员菜单****************************************/
void admin_menu(int sockfd, MSG *msg)
{int op = -1;printf(" ************ 1  查看   ************\n");printf(" ************ 2  修改   ************\n");printf(" ************ 3  添加   ************\n");printf(" ************ 4  删除   ************\n");printf(" ************ 5  列表   ************\n");printf(" ************ 6  清屏   ************\n");printf(" ************ 7 历史记录 ************\n");printf(" ************ 0 退回上级 ************\n");printf("请输入选项:");scanf("%d", &op);while(getchar()!='\n');if(op < 0 || op > 7){system("clear");printf("输入错误 请重新输入\n");admin_menu(sockfd,msg);}switch (op){case 0:system("clear");do_login(sockfd);break;case 1:do_admin_query(sockfd, msg);break;case 2:do_admin_modification(sockfd, msg);break;case 3:do_admin_adduser(sockfd, msg);break;case 4:do_admin_deluser(sockfd, msg);break;case 5:do_admin_list(sockfd, msg);break;case 6:system("clear");break;case 7:do_admin_history(sockfd,msg);break;default:printf("enter error\n");return;}
}/***************************************函数名：do_query*参   数：消息结构体*功   能：用户查找****************************************/
void do_user_query(int sockfd, MSG *msg)
{system("clear");memset(msg, 0, sizeof(MSG));msg->msgtype = USER_QUERY;strcpy(msg->username, user_name);strcpy(msg->passwd,user_passwd);//发送查询请求if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}//接受服务器响应while(1){recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "end", 3)){printf("find success\n");return;}if (!strncmp(msg->recvmsg, "no", 2)){printf("find error\n");return;}printf("----------------------------------\n");printf("staffno :%d\nusertype:%d\nname    :%s\npasswd  :%s\nage     :%d\nphone   :%s\naddr    :%s\nwork    :%s\ndate    :%s\nlevel   :%d\nsalary  :%d\n", msg->info.no, msg->info.usertype, msg->info.name, msg->info.passwd, msg->info.age, msg->info.phone, msg->info.addr, msg->info.work, msg->info.date, msg->info.level, msg->info.salary);printf("----------------------------------\n");}
}/***************************************函数名：do_modification*参   数：消息结构体*功   能：用户修改****************************************/
void do_user_modification(int sockfd, MSG *msg)
{system("clear");memset(msg, 0, sizeof(MSG));msg->msgtype = USER_MODIFY;strcpy(msg->username, user_name);strcpy(msg->passwd,user_passwd);int opt = 0;int tem;char str1[NAMELEN] = "";char str2[DATALEN] = "";char str3[PASSLEN] = "";printf("1:no\n2:usertype(Please contact the administrator)\n3:name\n4:passwd\n5:age\n6:phone\n7:addr\n8:work\n9:date\n10:level\n11:salary\nplease enter change option:");scanf("%d", &opt);while(getchar()!='\n');switch (opt){case 1:msg->flags = 1;printf("please enter no:");scanf("%d", &tem);msg->info.no = tem;break;case 2:msg->flags = 2;printf("please enter usertype:");scanf("%d", &tem);msg->info.usertype = tem;break;case 3:msg->flags = 3;printf("please enter name:");fgets(str1,NAMELEN,stdin);str1[strlen(str1)-1]='\0';strcpy(msg->info.name, str1);break;case 4:msg->flags = 4;printf("please enter passwd:");fgets(str3,PASSLEN,stdin);str3[strlen(str3)-1]='\0';strcpy(msg->info.passwd, str3);break;case 5:msg->flags = 5;printf("please enter age:");scanf("%d", &tem);msg->info.age = tem;break;case 6:msg->flags = 6;printf("please enter phone:");fgets(str1,NAMELEN,stdin);str1[strlen(str1)-1]='\0';strcpy(msg->info.phone, str1);break;case 7:msg->flags = 7;printf("please enter addr:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.addr, str2);break;case 8:msg->flags = 8;printf("please enter work:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.work, str2);break;case 9:msg->flags = 9;printf("please enter date:");fgets(str2,DATALEN,stdin);str2[strlen(str2)-1]='\0';strcpy(msg->info.date, str2);break;case 10:msg->flags = 10;printf("please enter level:");scanf("%d", &tem);msg->info.level = tem;break;case 11:msg->flags = 11;printf("please enter salary:");scanf("%d", &tem);msg->info.salary = tem;break;default:printf("enter error\n");return;}if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return;}system("clear");recv(sockfd, msg, sizeof(MSG), 0);if (!strncmp(msg->recvmsg, "ok", 2)){printf("user change success\n");return;}else if(!strncmp(msg->recvmsg, "no", 2)){printf("user change error\n");return;}
}/***************************************函数名：user_menu*参   数：消息结构体*功   能：用户菜单****************************************/
void user_menu(int sockfd, MSG *msg)
{int op = -1;printf(" ************ 1  查看  ************\n");printf(" ************ 2  修改  ************\n");printf(" ************ 3  清屏  ************\n");printf(" ************ 0  退回上级  *********\n");printf("请输入选项:");scanf("%d", &op);while(getchar()!='\n');if(op < 0 || op > 3){system("clear");printf("输入错误 请重新输入\n");user_menu(sockfd,msg);}switch (op){case 0:system("clear");do_login(sockfd);break;case 1:do_user_query(sockfd, msg);break;case 2:do_user_modification(sockfd, msg);break;case 3:system("clear");break;default:printf("enter error\n");break;}
}int admin_or_user_login(int sockfd, MSG *msg)
{//输入用户名和密码memset(msg->username, 0, NAMELEN);printf("请输入用户名：");scanf("%s", msg->username);getchar();memset(msg->passwd, 0, DATALEN);printf("请输入密码: ");scanf("%s", msg->passwd);getchar();strcpy(user_name,msg->username);strcpy(user_passwd,msg->passwd);//发送登陆请求if (send(sockfd, msg, sizeof(MSG), 0) < 0){printf("Sending the account to the server error\n");return -1;}//接受服务器响应recv(sockfd, msg, sizeof(MSG), 0);//判断是否登陆成功if (strncmp(msg->recvmsg, "OK", 2) == 0){if (msg->usertype == ADMIN){system("clear");printf("亲爱的管理员，欢迎您登陆员工管理系统！\n");while (1){admin_menu(sockfd, msg);}}else if (msg->usertype == USER){system("clear");printf("亲爱的用户，欢迎您登陆员工管理系统！\n");while (1){user_menu(sockfd, msg);}}}else{printf("登陆失败！%s\n", msg->recvmsg);admin_or_user_login(sockfd,msg);}return 0;
}/*************************************************函数名：do_login*参   数：套接字、消息结构体*返回值：是否登陆成功*功   能：登陆*************************************************/
int do_login(int socketfd)
{int n;MSG msg;while (1){printf("**********************************\n");printf("********  1: 管理员模式   ********\n");printf("********  2:普通用户模式  ********\n");printf("********  0: 断开客户端    ********\n");printf("**********************************\n");printf("请输入您的选择（数字）>> ");scanf("%d", &n);while(getchar()!='\n');if(n < 0 || n > 2){system("clear");printf("输入错误 请重新输入\n");do_login(socketfd);}switch (n){case 1://管理员模式登录msg.msgtype = ADMIN_LOGIN; // 1msg.usertype = ADMIN;	   // 0break;case 2://普通用户登录msg.msgtype = USER_LOGIN;msg.usertype = USER;break;case 0://退出msg.msgtype = QUIT;if (send(socketfd, &msg, sizeof(MSG), 0) < 0){perror("do_login send");return -1;}close(socketfd);exit(0);default:printf("您的输入有误，请重新输入\n");}admin_or_user_login(socketfd, &msg);}
}int main(int argc, const char *argv[])
{// socket->填充->绑定->监听->等待连接->数据交互->关闭system("clear");int socketfd;//创建网络通信的套接字 流式套接字if (-1 == (socketfd = socket(AF_INET, SOCK_STREAM, 0))){printf("socket error\n");return -1;}printf("socket success\n");//填充网络结构体//填充服务器网路信息结构体struct sockaddr_in sin;//填充为IPV4地址sin.sin_family = AF_INET;//填充服务器IPsin.sin_addr.s_addr = inet_addr(IP);//填充服务器端口号sin.sin_port = htons(atoi(PORT));//连接服务器if (-1 == connect(socketfd, (struct sockaddr *)&sin, sizeof(sin))){printf("connect error\n");return -1;}printf("connect suceess\n");//登陆do_login(socketfd);//关闭套接字close(socketfd);return 0;
}

测试现象

Ubuntu 18.04 PZB - VMware
