ElasticSearch安装

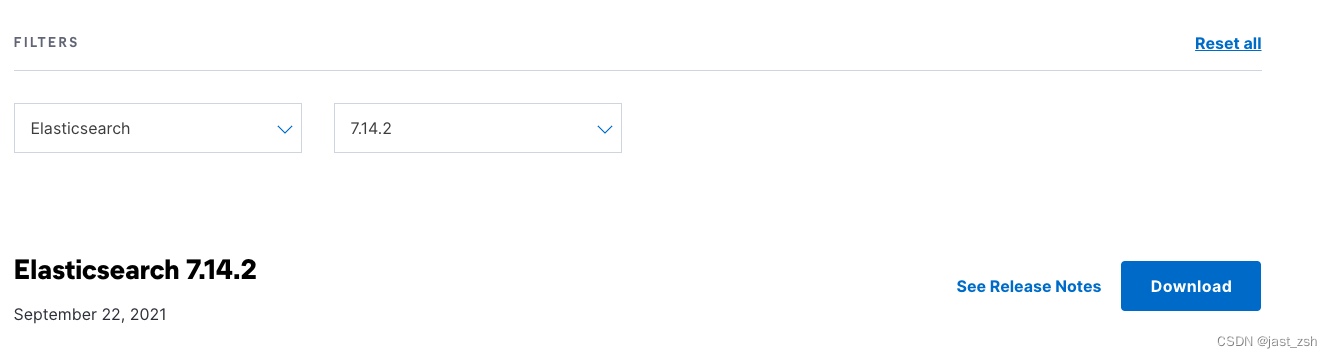

下载安装包

下载地址：https://www.elastic.co/cn/downloads/past-releases#elasticsearch

安装版本：7.14.2

基础环境安装

JDK安装

安装es的机器都需要安装

JDK版本11

• 将安装包移动到/opt目录下

tar -zxvf jdk-11.0.17_linux-x64_bin.tar.gz

• JDK加入环境变量

  修改/etc/profile，在尾部添加

  export JAVA_HOME=/opt/jdk-11.0.17
  export PATH=$PATH:$JAVA_HOME/bin


修改Linux配置

• 编辑 /etc/security/limits.conf，追加以下内容

* soft nofile 65536
* hard nofile 65536
* hard memlock unlimited
* soft memlock unlimited

• 在/etc/sysctl.conf文件最后添加一行

vm.max_map_count=262144

执行

sysctl -p

• 修改 /etc/systemd/system.conf

vi /etc/systemd/system.conf
DefaultLimitMEMLOCK=infinity

安装ES

需要安装es的集群都要执行以下步骤

• 将安装包移动到/opt目录

mv elasticsearch-7.14.2-linux-x86_64.tar.gz /opt

• 修改ES使用内存

修改配置文件config/jvm.options

################################################################
## IMPORTANT: JVM heap size
################################################################
##
## The heap size is automatically configured by Elasticsearch
## based on the available memory in your system and the roles
## each node is configured to fulfill. If specifying heap is
## required, it should be done through a file in jvm.options.d,
## and the min and max should be set to the same value. For
## example, to set the heap to 4 GB, create a new file in the
## jvm.options.d directory containing these lines:
##
## -Xms4g
## -Xmx4g
##
## See https://www.elastic.co/guide/en/elasticsearch/reference/current/heap-size.html
## for more information
##
################################################################
-Xms25g
-Xmx25g

• 修改elasticsearch.yml配置

cluster.name: dev-cluster
node.name: node-2
node.master: true
node.data: true
node.ingest: true
bootstrap.memory_lock: true
bootstrap.system_call_filter: false
network.host: 172.16.24.192
http.port: 9200
transport.tcp.port: 9300
transport.tcp.compress: true
http.cors.enabled: true
http.cors.allow-origin: "*"
cluster.initial_master_nodes:  ["node-1","node-2","node-3"]
discovery.zen.ping.unicast.hosts: ["172.16.24.191:9300","172.16.24.192:9300","172.16.24.193:9300"]
discovery.zen.minimum_master_nodes: 1
# 启用脚本 默认painless
cluster.routing.allocation.same_shard.host: true
#超时时间
discovery.zen.ping_timeout: 5s
discovery.zen.fd.ping_timeout: 5s
#禁止自动创建索引
action.auto_create_index: true
# 一个集群中的N个节点启动后,才允许进行恢复处理
gateway.recover_after_nodes: 1
# 设置初始化恢复过程的超时时间,超时时间从上一个配置中配置的N个节点启动后算起
gateway.recover_after_time: 5m
# 设置这个集群中期望有多少个节点.一旦这N个节点启动(并且recover_after_nodes也符合),
# 立即开始恢复过程(不等待recover_after_time超时)
gateway.expected_nodes: 2
# 线程池
thread_pool.search.size: 100
thread_pool.search.queue_size: 1000
#xpack 插件的授权类型，basic是免费的，还有其他收费版本
xpack.license.self_generated.type: basic
#是否开启安全验证
xpack.security.enabled: true
#是否开启远程访问安全验证
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
# 证书位置，该文件在下面流程会生成
xpack.security.transport.ssl.keystore.path: certs/elastic-certificates.p12
# 证书位置，该文件在下面流程会生成
xpack.security.transport.ssl.truststore.path: certs/elastic-certificates.p12

• 创建elasticsearch用户

useradd elasticsearch
passwd elasticsearch

• 修改目录权限

chown elasticsearch.elasticsearch -R /opt/elasticsearch-7.14.2

• 切换用户启动es

su elasticsearch
cd /opt/elasticsearch-7.14.2

• 生成CA证书

bin/elasticsearch-certutil ca
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
This tool assists you in the generation of X.509 certificates and certificate
signing requests for use with SSL/TLS in the Elastic stack.The 'ca' mode generates a new 'certificate authority'
This will create a new X.509 certificate and private key that can be used
to sign certificate when running in 'cert' mode.Use the 'ca-dn' option if you wish to configure the 'distinguished name'
of the certificate authorityBy default the 'ca' mode produces a single PKCS#12 output file which holds:* The CA certificate* The CA's private keyIf you elect to generate PEM format certificates (the -pem option), then the output will
be a zip file containing individual files for the CA certificate and private keyPlease enter the desired output file [elastic-stack-ca.p12]:  #直接回车即可,不用设置密码
Enter password for elastic-stack-ca.p12 : #直接回车即可,不用设置密码

在当前目录可以看到 elastic-stack-ca.p12文件

• 生成密钥

bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
This tool assists you in the generation of X.509 certificates and certificate
signing requests for use with SSL/TLS in the Elastic stack.The 'cert' mode generates X.509 certificate and private keys.* By default, this generates a single certificate and key for useon a single instance.* The '-multiple' option will prompt you to enter details for multipleinstances and will generate a certificate and key for each one* The '-in' option allows for the certificate generation to be automated by describingthe details of each instance in a YAML file* An instance is any piece of the Elastic Stack that requires an SSL certificate.Depending on your configuration, Elasticsearch, Logstash, Kibana, and Beatsmay all require a certificate and private key.* The minimum required value for each instance is a name. This can simply be thehostname, which will be used as the Common Name of the certificate. A fulldistinguished name may also be used.* A filename value may be required for each instance. This is necessary when thename would result in an invalid file or directory name. The name provided hereis used as the directory name (within the zip) and the prefix for the key andcertificate files. The filename is required if you are prompted and the nameis not displayed in the prompt.* IP addresses and DNS names are optional. Multiple values can be specified as acomma separated string. If no IP addresses or DNS names are provided, you maydisable hostname verification in your SSL configuration.* All certificates generated by this tool will be signed by a certificate authority (CA)unless the --self-signed command line option is specified.The tool can automatically generate a new CA for you, or you can provide your own withthe --ca or --ca-cert command line options.By default the 'cert' mode produces a single PKCS#12 output file which holds:* The instance certificate* The private key for the instance certificate* The CA certificateIf you specify any of the following options:* -pem (PEM formatted output)* -keep-ca-key (retain generated CA key)* -multiple (generate multiple certificates)* -in (generate certificates from an input file)
then the output will be be a zip file containing individual certificate/key filesEnter password for CA (elastic-stack-ca.p12) : # 直接回车
Please enter the desired output file [elastic-certificates.p12]: # 直接回车
Enter password for elastic-certificates.p12 : # 直接回车Certificates written to /opt/elasticsearch-7.14.2/elastic-certificates.p12This file should be properly secured as it contains the private key for
your instance.This file is a self contained file and can be copied and used 'as is'
For each Elastic product that you wish to configure, you should copy
this '.p12' file to the relevant configuration directory
and then follow the SSL configuration instructions in the product guide.For client applications, you may only need to copy the CA certificate and
configure the client to trust this certificate.

在当前目录会生成elastic-certificates.p12文件

• 证书移动到指定目录

# 在config目录下创建certs
mkdir config/certs
# 证书移动到certs目录mv elastic-certificates.p12 config/certs/

• 后台启动es

cd /opt/elasticsearch-7.14.2
bin/elasticsearch -d

• 设置密码

这里可以复制输入

bin/elasticsearch-setup-passwords interactive
warning: usage of JAVA_HOME is deprecated, use ES_JAVA_HOME
Initiating the setup of passwords for reserved users elastic,apm_system,kibana,kibana_system,logstash_system,beats_system,remote_monitoring_user.
You will be prompted to enter passwords as the process progresses.
Please confirm that you would like to continue [y/N]yEnter password for [elastic]:
Reenter password for [elastic]:
Enter password for [apm_system]:
Reenter password for [apm_system]:
Enter password for [kibana_system]:
Reenter password for [kibana_system]:
Enter password for [logstash_system]:
Reenter password for [logstash_system]:
Enter password for [beats_system]:
Reenter password for [beats_system]:
Enter password for [remote_monitoring_user]:
Reenter password for [remote_monitoring_user]: Changed password for user [apm_system]
Changed password for user [kibana_system]
Changed password for user [kibana]
Changed password for user [logstash_system]
Changed password for user [beats_system]
Changed password for user [remote_monitoring_user]
Changed password for user [elastic]

• 验证

浏览器访问http://ip:9200/，会提示输入账号密码，输入elastic账号与设置的密码登录即可

{"name" : "node-1","cluster_name" : "dev-cluster","cluster_uuid" : "J1_qbq7ZTcC7RC_9HIOJnw","version" : {"number" : "7.14.2","build_flavor" : "default","build_type" : "tar","build_hash" : "6bc13727ce758c0e943c3c21653b3da82f627f75","build_date" : "2021-09-15T10:18:09.722761972Z","build_snapshot" : false,"lucene_version" : "8.9.0","minimum_wire_compatibility_version" : "6.8.0","minimum_index_compatibility_version" : "6.0.0-beta1"},"tagline" : "You Know, for Search"
}

启动报错

bootstrap check failure [1] of [1]: memory locking requested for elasticsearch process but memory is not locked

修改参数

> vi /etc/systemd/system.conf
DefaultLimitMEMLOCK=infinity> /etc/security/limits.conf
* hard memlock unlimited
* soft memlock unlimited

Kibana安装

Kibana简介

Kibana是一个开源的基于浏览器的分析和可视化平台，可以用于搜索，查看，删除Elasticsearch索引并与存储在Elasticsearch索引中的数据进行交互。可以执行高级数据分析，并且以各种图标、表格和地图的形式可视化数据。

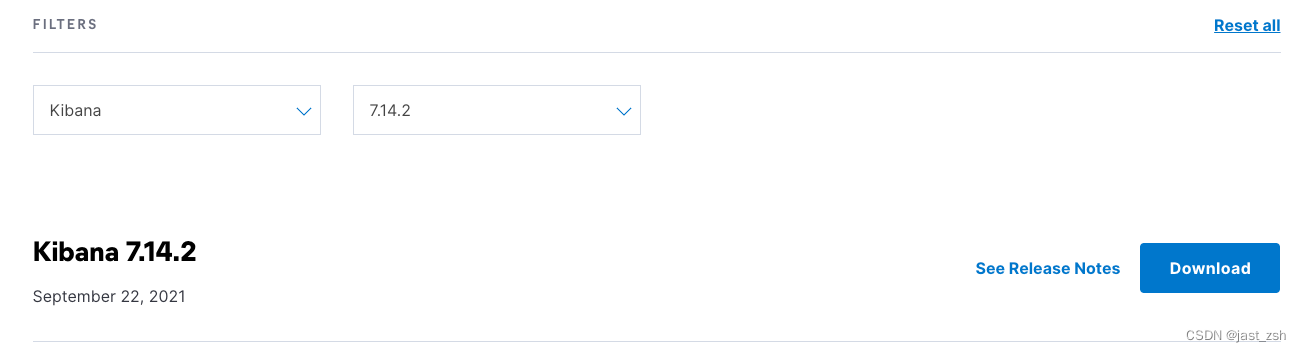

Kibana下载

下载地址：https://www.elastic.co/cn/downloads/past-releases#elasticsearch

安装版本：7.14.2

Kibana安装

• 安装包移动到/opt目录

 mv kibana-7.14.2-linux-x86_64 /opt

• 解压

 tar -zxvf kibana-7.14.2-linux-x86_64.tar.gz

• 修改配置文件

vi config/kibana.yml

server.host: "172.16.24.191"
elasticsearch.hosts: ["http://172.16.24.191:9200"]
# 设置支持中文
i18n.locale: "zh-CN"
# 在es中设置kibana密码
elasticsearch.username: "kibana"
elasticsearch.password: "设置的密码"

• 修改权限

chown elasticsearch.elasticsearch -R kibana-7.14.2-linux-x86_64

• 启动

nohup bin/kibana > kibana.log &

• 查看进程

ps -ef|grep kibana
elastic+ 11336 11288 99 14:09 pts/0    00:00:12 /opt/kibana-7.14.2-linux-x86_64/node/bin/node --preserve-symlinks-main --preserve-symlinks /opt/kibana-7.14.2-linux-x86_64/src/cli/dist

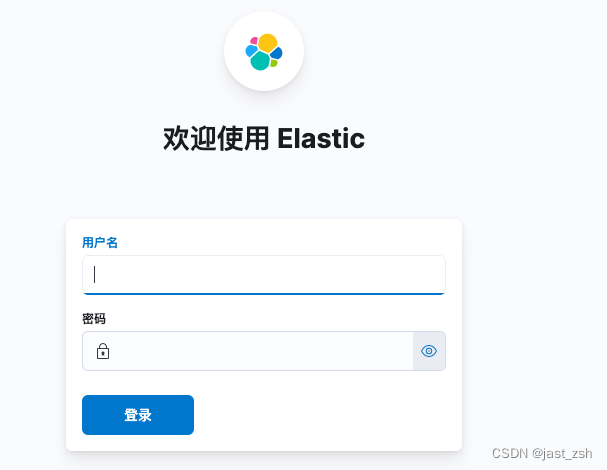

• 访问地址

http://ip:5601

输入账号elastic，与设置的密码登录
